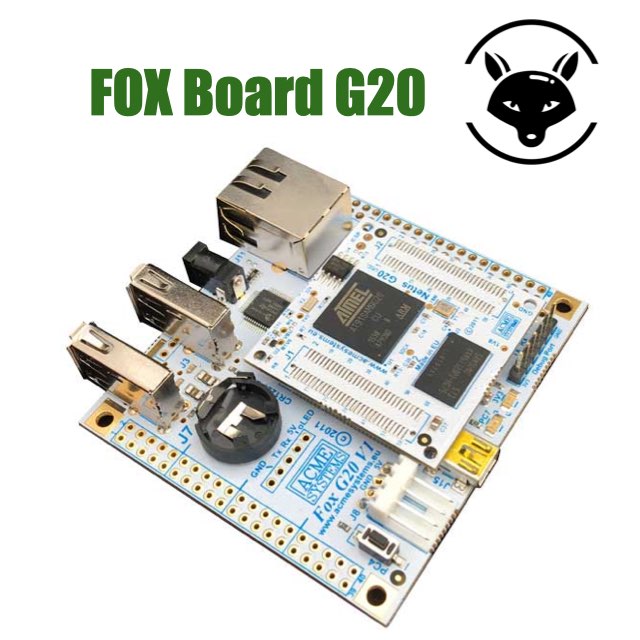

| FOX Board G20
Ready to use and low cost Linux embedded board in just 66 x 72 mm designed to
reduce the time to market of your embedded projects
|
FOX Board G20 is Single Board Computer built around the Atmel AT91SAM9G20 microcontroller based on a 400Mhz ARM9 CPU
The main fields of application are:
- Solid-state web servers, gateways, etc.
- OEM embedded devices enhanced with Internet connectivity and Linux flexibility
Visit the FOX Board G20 technical portal
Thousands of applications can be installed on the FOX Board G20 thanks to the ARM9 version of
the most popular Linux distribution lines: Debian, Gentoo, OpenWRT, OpenEmbedded and full
support to a huge set of popular program languages like C, C++, Python, Perl, Java, PHP,
Tcl, etc.).
Two 40 pin sockets 2.54mm pitch are available to plug the board on specific application
carriers or add-on boards. On these pins 3.3 Volt signals are available which can be used
to implement RS232/RS485/RS422, I2C, SPI, GPIO, A/D and PWM interfaces.
|
FOX Board G20 main features
- Same footprint and pinout as the previous version FOX Board LX832 (pinout)
- Designed around the new Netus G20 ARM9 @ 400Mhz CPU module (more info...)
- Two USB 2.0 host ports (12 Mbits per second)
- One Ethernet 10/100 port
- One USB device port (12 Mbits per second)
- One debug serial port (3.3v)
- Two serial ports (3.3v)
- One serial port for 4DSystems oLed displays (http://www.4dsystems.com.au)
- On-board microSD socket (up to 2GB)
- 5VDC power supply input (compatible with PS5V1A)
- Real Time Clock with on-board lithium backup battery (not included)
- GPIO lines (3.3v)
- 4 A/D converter lines
- I2C
- SPI
- Quad power supply Netus PS1 module on-board (more info...)
- Fully mechanical compatibilty with TUXCASE and FOXCASE
|
|
 | FOX Board G20
FOX Board G20 is a "ready-to-run" Embedded Linux System perfect to use as a mini WEB server, network device or as a core module for your own embedded devices. A fully Open Source environment is available to customize and build your own kernel image or to develop user applications using standard GNU tools.
Version with Atmel AT91SAM9G20 with 8MB of DATAFLASH, 64MB of SDRAM and up to 8GB of microSD.
FOX Board G20 Includes:
- Netus G20 module
- Netus PS1 module
- CR1220 RTC battery
Warning: The FOX Board G20 doesn't boot without the microSD with Linux Kernel and rootFS. This memory card is not included.
| - Price: € 139,00
- Notes: The microSD and RTC Lithium battery CR1220 are not included
- Code: FOXG20
- More info...
|
| This product is available also in bulk packaging of 10 pieces | | | - Price: € 1.251,00
- Code: FOXG20-B10
|
| This product is available also in bulk packaging of 100 pieces | | | - Price: € 11.120,00
- Code: FOXG20-B100
|
|
 | FOX Board G20 combo box
Main features
- FOX Board G20 with Netus G20 and Netus PS1 modules (FOXG20, NETUSG20, NETUSPS1)
- Wall mounted switching power supply at 5VDC-1A (PS5V1A)
- Debug Port Interface (DPI)
- 2GB bootable microSD with preinstalled Debian Linux (DEBM2G)
- CR1220 3V RTC Lithium Battery
- USB microSD card reader
- MiniUSB cable
- Transparent plastic enclosure (FOXCASE)
| - Price: € 185,00
- Notes: This article replace the previous COMBO-1 kit
- Code: COMBO-2
- More info...
|
| This product is available also in bulk packaging of 10 pieces | | | - Price: € 1.665,00
- Code: COMBO-2-B10
|
|
 | TUX Case
TUX Case is a plastic enclosure for the FOX Board G20 that resembles the very popular Linux icon TUX drawn by Larry Ewing.
FOX Board and PS5V1A are not included.
|
 | Lithium battery
Lithium battery model CR1220 at 3 volt for the FOX Board G20 RTC circuitry.
| - Price: € 2,00
- Code: CH23-1220
|
| This product is available also in bulk packaging of 100 pieces | | | - Price: € 160,00
- Code: CH23-1220-B100
|
|
 | Debian microSD 2G memory card
Bootable 2GB microSD Memory with a preinstalled Debian Linux distribution for the FOX Board G20.
Warning: Please note that this card contains Open Source code under GPL licence and you are buying just the memory card not the software on it. Any right on this software or any support are not included-
| - Price: € 15,00
- Code: DEBM2G
|
|
 | FOX Case
Transparent plastic enclosure for the FOX Board and one add-on board.
| This product is available also in bulk packaging of 10 pieces | | | - Price: € 90,00
- Code: FOXCASE-B10
|
| This product is available also in bulk packaging of 100 pieces | | | - Price: € 800,00
- Code: FOXCASE-B100
|
|
 | Debug Port Interface
This device replace the previous FOXCONS device. It converts the 3.3 volt asyncronous signals available on the FOX G20 debug port or FOXLX832 console port (J10) to USB using a FTDI chip.
|
 | FOX size proto-board
FOX size prototyping board
| - Price: € 6,00
- Code: PROTO-1
|
| This product is available also in bulk packaging of 10 pieces | | | - Price: € 54,00
- Code: PROTO-1-B10
|
| This product is available also in bulk packaging of 100 pieces | | | - Price: € 480,00
- Code: PROTO-1-B100
|
|
 | EUROCARD size proto-board
2.54 mm pitch prototyping board for FOX Board G20 or LX832.
Dimension 160x100 mm
| - Price: € 8,00
- Code: PROTO-2
|
| This product is available also in bulk packaging of 10 pieces | | | - Price: € 72,00
- Code: PROTO-2-B10
|
| This product is available also in bulk packaging of 100 pieces | | | - Price: € 640,00
- Code: PROTO-2-B100
|
|
 | Set of strip 2x20 headers and sockets
Q.ty 6 of 2x20 header pitch 2.54mm L 6mm
Q.ty 6 of 2x20 header pitch 2.54mm L 12mm
Q.ty 6 of 2x20 socket pitch 2.54mm
| - Price: € 6,00
- Code: STRIPSET
|
|
 | Switching power supply 5V 1A
Switching power supply Model ADPA05-001C made in China by Haitong Electronic co.,ltd.
Input 100-240VAC 50/60Hz. Output 5VDC/1A.
Pluggable directly to the FOX Board.
|
 | Switching power supply with US AC Plug
Switching power supply Model ADPA05-001C made in China by Haitong Electronic co.,ltd.
Input 100-240VAC 50/60Hz. Output 5VDC/1A.
Pluggable directly to the FOX Board.
| - Price: € 15,00
- Notes: AC plug for US
- Code: PS5V1AUS
- More info...
|
|
 | ATMEL AT91SAM9G20 CPU module
Netus G20 is a 4x4cm Linux ready core engine based on the new ARM9 (c) CPU Atmel (tm) AT91SAM9G20 @ 400Mhz designed to reduce the time to market of your Linux embedded projects.
| This product is available also in bulk packaging of 10 pieces | | | - Price: € 621,00
- Code: NETUSG20-B10
|
| This product is available also in bulk packaging of 100 pieces | | | - Price: € 5.520,00
- Code: NETUSG20-B100
|
|
|
|
